Data Model

Table of contents

Data model (Overview)

Our data model is designed to capture all the important information for managing rental properties, tenants, rental agreements, and payments. The following diagram shows the relationships between our main entities:

  • User: Represents the owner/manager of the rental properties.
  • apartment: Contains details of individual apartments including address and association to a user.
  • tenant: Stores tenant information such as name, contact, and identifiers.
  • rental_agreement: Connects an apartment with a tenant, and defines the rental period and rent amount.
  • rent_payment: Logs payments made towards rental agreements.

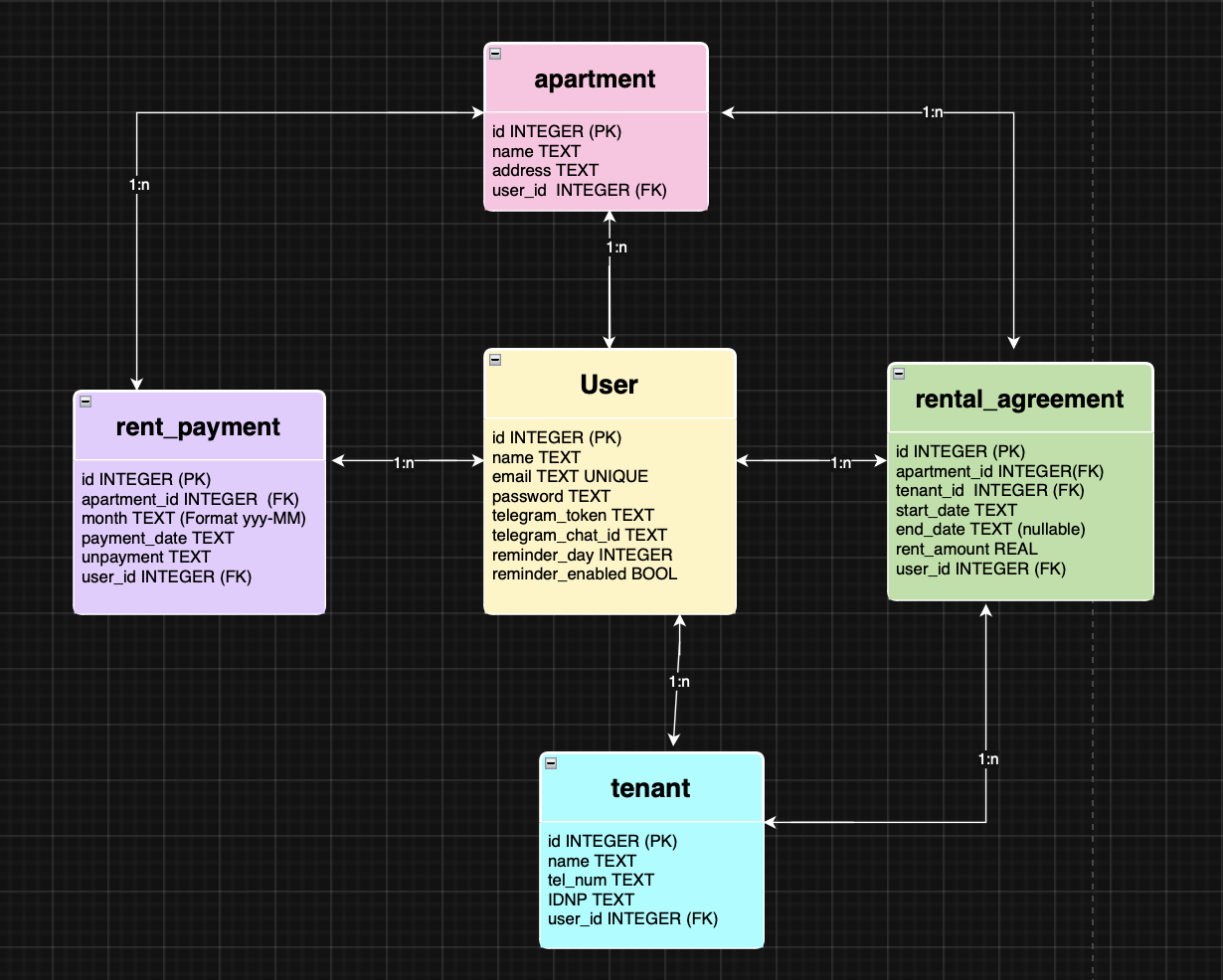

Below is a visual overview of the data model:

Data Model

User

Field Type Description
id Integer Primary key
name String Name of the user (landlord currently)
email String Unique email address
password String Hashed password
telegram_token String Optional telegram token when enabling reminders
telegram_id String Optional Telegram chat ID
reminder_day String Optional Day of the month when reminders should be sent

apartment

Field Type Description
id Integer Primary key
user_id Integer Foreign key → User.id
name String Internal apartment label
address String Full address

tenant

Field Type Description
id Integer Primary key
name String Tenant’s full name
IDNP String Optional personal identity number of the tenant
phone String Optional phone number
email String Optional email address
user_id Integer Foreign key → User.id

rental_agreement

Field Type Description
id Integer Primary key
apartment_id Integer Foreign key → Apartment.id
tenant_id Integer Foreign key → Tenant.id
start_date Date Start of rental period
end_date Date End of rental period
monthly_rent Float Rent amount per month
user_id Integer Foreign key → User.id

rent_payment

Field Type Description
id Integer Primary key
apartment_id Integer Foreign key → Apartment.id
month Integer Numeric month (1-12)
payment_date Date Optional actual payment date
user_id Integer Foreign key → User.id

Relationships & Logic Enforcement

  • A User owns many Apartments.
  • An Apartment can have multiple RentalAgreements over time (but not overlapping).
  • A Tenant can be linked to multiple agreements (e.g., repeat renters).
  • A RentalAgreement generates RentPayments for each full month between start_date and end_date.
  • Foreign keys enforce cascading behavior where applicable.

Validation & Constraints

Constraint Description
Email uniqueness User email must be unique in the system.
Telegram ID uniqueness One user per Telegram chat ID (optional but enforced).
Apartment–User relationship Each apartment is strictly owned by one user.
Agreement overlap No two rental agreements for the same apartment may overlap in time.
RentPayment uniqueness Only one payment record per (rental agreement, month, year).
Non-null required fields All primary fields (e.g., names, IDs, dates) are required.
Date logic end_date must be after start_date for agreements.

This data model keeps the logic lean, extensible, and focused on monthly rental workflows - without overengineering it like a commercial property platform.
